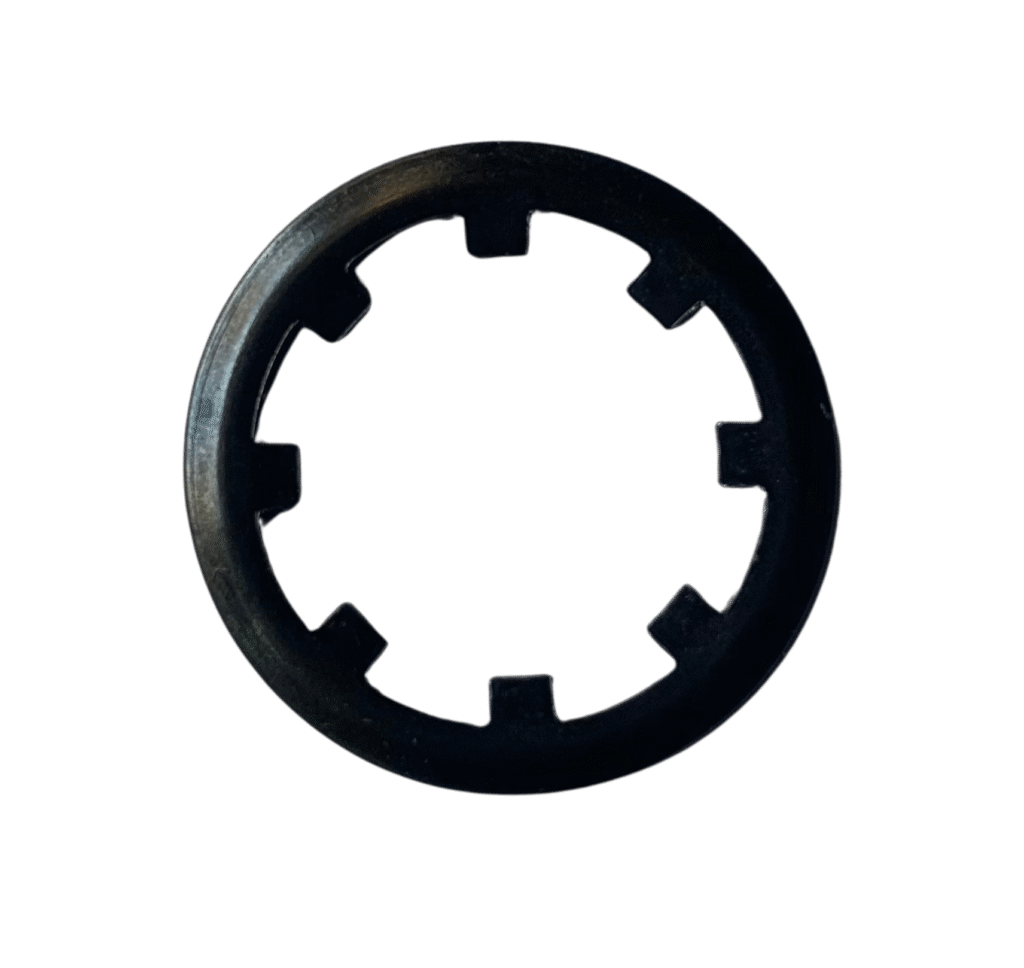

Arandelas de Retención
| d1 | d2 | d3 | d4 | s | m | n |
|
Carga adm. sin ranura (Kg.) |
| 2 | 1,90 | 1,80 | 6,5 | 0,25 | 0,4 | 1,0 | 3 | 20 |
| 3 | 2,90 | 2,80 | 8,0 | 4 | 25 | |||
| 4 | 3,90 | 3,80 | 9,0 | |||||
| 5 | 4,90 | 4,80 | 10,0 | |||||
| 6 | 5,90 | 5,75 | 11,0 | 0,5 | 1,5 | 5 | ||
| 7 | 6,90 | 6,75 | 12,0 | |||||
| 8 | 7,85 | 7,75 | 13,0 | |||||
| 9 | 8,85 | 8,75 | 14,5 | 0,30 | 0,6 | 30 | ||
| 10 | 9,85 | 9,70 | 16,0 | 40 | ||||
| 12 | 11,85 | 11,70 | 18,0 | 6 | ||||
| 14 | 13,80 | 13,65 | 20,5 | 50 | ||||
| 15 | 14,80 | 14,40 | 23,0 | 0,40 | 0,8 | 2,0 | 7 | 80 |
| 16 | 15,80 | 15,60 | 24,5 | 0,50 | 8 | 90 | ||
| 20 | 19,75 | 19,50 | 29,0 | 1,0 | 110 | |||
| 22 | 21,75 | 21,50 | 31,0 | 120 | ||||
| 25 | 24,75 | 24,50 | 34,0 | |||||
| 30 | 29,70 | 29,50 | 40,0 | 140 |
|
d1 |
d2 |
d3 |
d4 |
s |
m |
n |
N° de dientes |
Carga adm. sin ranura (Kg.) |
|
2 |
1,90 |
1,80 |
6,5 |
0,25 |
0,4 |
1,0 |
3 |
20 |
|
3 |
2,90 |
2,80 |
8,0 |
4 |
25 |
|||
|
4 |
3,90 |
3,80 |
9,0 |
|||||
|
5 |
4,90 |
4,80 |
10,0 |
|||||
|
6 |
5,90 |
5,75 |
11,0 |
0,5 |
1,5 |
5 |
||
|
7 |
6,90 |
6,75 |
12,0 |
|||||
|
8 |
7,85 |
7,75 |
13,0 |
|||||
|
9 |
8,85 |
8,75 |
14,5 |
0,30 |
0,6 |
30 |
||
|
10 |
9,85 |
9,70 |
16,0 |
40 |
||||
|
12 |
11,85 |
11,70 |
18,0 |
6 |
||||
|
14 |
13,80 |
13,65 |
20,5 |
50 |
||||
|
15 |
14,80 |
14,40 |
23,0 |
0,40 |
0,8 |
2,0 |
7 |
80 |
|
16 |
15,80 |
15,60 |
24,5 |
0,50 |
8 |
90 |
||
|
20 |
19,75 |
19,50 |
29,0 |
1,0 |
110 |
|||
|
22 |
21,75 |
21,50 |
31,0 |
120 |
||||
|
25 |
24,75 |
24,50 |
34,0 |
|||||
|
30 |
29,70 |
29,50 |
40,0 |
140 |
