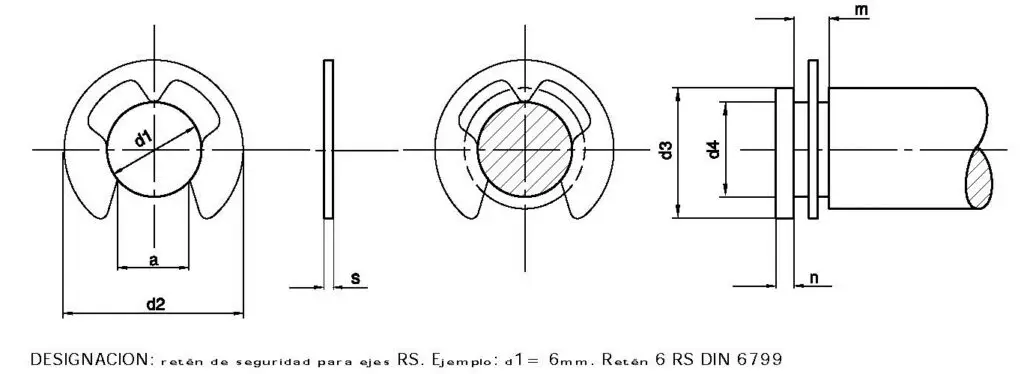

Reten de Seguridad DIN 6799
- MATERIAL: SAE 1070 IRAM IAS U 500-179 (Similar C60, C67 y C75 según 17222)
- DUREZA: HRC 46 – 50
- Disponible en columnas
- Disponible en acero inoxidable AISI 316L
| ANILLO | MEDIDAS DE LA RANURA | ||||||||||||
| Ø | Ø | a | s | Tol. | Kgs. x 1000 Pzs. | d3 | d4 | m | Tol. | n | Carga Axial para d3 en Kg. | ||
| d1 | d2 | H10 | de | hasta | h11 | mín. | mín. | máx. | |||||
| 1.5 | 4.0 | 1.28 | 0.4 | ±0.02 | 0.021 | 2.0 | 2.5 | 1.5 | 0.44 | +0.02/-0 | 0.8 | 7 | 12 |
| 1.9 | 4.5 | 1.61 | 0.5 | ±0.02 | 0.040 | 2.5 | 3.0 | 1.9 | 0.54 | +0.03/-0 | 1.0 | 10 | 20 |
| 2.3 | 6.0 | 1.94 | 0.6 | ±0.02 | 0.070 | 3.0 | 4.0 | 2.3 | 0.64 | +0.03/-0 | 1.0 | 14 | 32 |
| 3.2 | 7.0 | 2.70 | 0.6 | ±0.02 | 0.090 | 4.0 | 5.0 | 3.2 | 0.64 | +0.03/-0 | 1.0 | 20 | 45 |
| 4 | 9.0 | 3.34 | 0.7 | ±0.02 | 0.158 | 5.0 | 7.0 | 4.0 | 0.74 | +0.03/-0 | 1.2 | 30 | 65 |
| 5 | 11.0 | 4.11 | 0.7 | ±0.02 | 0.234 | 6.0 | 8.0 | 5.0 | 0.74 | +0.03/-0 | 1.2 | 40 | 75 |
| 6 | 12.0 | 5.26 | 0.7 | ±0.02 | 0.255 | 7.0 | 9.0 | 6.0 | 0.74 | +0.03/-0 | 1.2 | 50 | 100 |
| 7 | 14.0 | 5.84 | 0.9 | ±0.02 | 0.474 | 8.0 | 11.0 | 7.0 | 0.94 | +0.03/-0 | 1.5 | 60 | 120 |
| 8 | 16.0 | 6.52 | 1.0 | ±0.03 | 0.660 | 9.0 | 12.0 | 8.0 | 1.05 | +0.06/-0 | 1.8 | 70 | 170 |
| 9 | 18.5 | 7.63 | 1.1 | ±0.03 | 1.000 | 10.0 | 14.0 | 9.0 | 1.15 | +0.06/-0 | 2.0 | 80 | 200 |
| 10 | 20.0 | 8.32 | 1.2 | ±0.03 | 1.120 | 11.0 | 15.0 | 10.0 | 1.25 | +0.06/-0 | 2.0 | 90 | 220 |
| 12 | 23.0 | 10.45 | 1.3 | ±0.03 | 1.770 | 13.0 | 18.0 | 12.0 | 1.35 | +0.06/-0 | 2.5 | 100 | 240 |
| 15 | 29.0 | 12.61 | 1.5 | ±0.03 | 3.370 | 16.0 | 24.0 | 15.0 | 1.55 | +0.06/-0 | 3.0 | 130 | 300 |
| 19 | 37.0 | 15.92 | 1.75 | ±0.03 | 5.619 | 20.0 | 31.0 | 19.0 | 1.80 | +0.06/-0 | 3.5 | 150 | 425 |
| 24 | 44.0 | 21.88 | 2.0 | ±0.03 | 8.180 | 25.0 | 38.0 | 24.0 | 2.05 | +0.06/-0 | 4.0 | 200 | 550 |
